Fix & Prevent 429 Webhook Rate-Limit Throttling in n8n (Too Many Requests) — for Automation Developers

If you’re seeing HTTP 429 Too Many Requests in an n8n webhook workflow, you can fix it by identifying which component is rate-limiting (the upstream API, your reverse proxy, or your n8n execution throughput) and then applying throttling + backoff so your request rate returns to an acceptable level instead of repeatedly crashing into the limit.

Next, you’ll avoid wasting time by learning what 429 actually means in automation pipelines, which headers confirm rate limiting, and why “just retry” often makes the situation worse unless you implement retries with timing control such as Retry-After and exponential backoff.

Then, you’ll diagnose the true bottleneck with a practical checklist—distinguishing inbound webhook bursts from outbound API quotas and from n8n concurrency—so you stop chasing symptoms like partial runs, missing responses, or intermittent failures that look random but follow a volume pattern.

Introduce a new idea: once the workflow is stable at the node level, you can push reliability further by adding architecture-level protection (queue/worker scaling, buffering, or gateway rate limiting) so webhooks remain predictable even under burst spikes.

What does HTTP 429 (Too Many Requests) mean in n8n webhook workflows?

HTTP 429 is a client error status that means your workflow (or a component in front of it) is sending too many requests in a given time window, so the receiver forces you to slow down—often by providing a Retry-After delay. (datatracker.ietf.org)

With webhook-driven automation, the trap is that 429 can happen in two different directions:

1. Inbound: your webhook endpoint receives too many events too quickly (or your gateway/proxy thinks it does).
2. Outbound: your workflow fans out and calls an API too fast (the most common case).

Either way, “429” is not the real enemy—uncontrolled request rate is. Once you treat rate as a first-class variable, you can turn 429 into a predictable control loop: detect → wait → retry → continue.

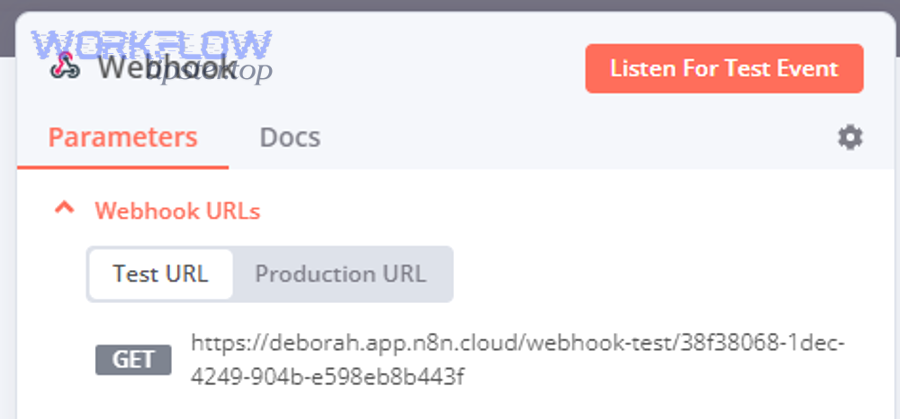

Then, ground yourself with what n8n’s webhook actually is: a trigger node that receives HTTP requests and can respond immediately or after the workflow finishes, depending on configuration. (docs.n8n.io)

Is a 429 error always caused by the external API you call from n8n?

No—HTTP 429 in an n8n webhook workflow is not always caused by the external API, because it can also come from (1) your gateway/proxy/WAF, (2) your own webhook endpoint behavior, or (3) throughput limits caused by high concurrency and burst executions.

To make that “No” operational, look for three quick signals:

• Where the 429 appears: if the webhook call itself returns 429 before your workflow even runs, it’s likely your ingress layer or the webhook process; if a downstream node returns 429, it’s likely the external API call.
• Whether the response includes rate-limit headers: many APIs include quota headers or Retry-After; proxies often have their own headers or generic pages.
• Whether the error correlates with event spikes: bursts often create a “thundering herd” where many executions retry at the same time, causing repeated 429 waves.

More importantly, treat 429 as a rate-shaping request from the system you’re talking to. The HTTP spec explicitly allows the responder to include Retry-After to tell you how long to wait before trying again. (datatracker.ietf.org)

What headers and signals (like Retry-After) should you look for to confirm rate limiting?

Rate limiting is confirmed when you can tie the 429 to (1) a time window, (2) a quota counter or reset time, and (3) an explicit wait instruction such as Retry-After. (datatracker.ietf.org)

In practice, check for:

• Retry-After: the most actionable signal—wait exactly this long (or at least this long) before retrying. (datatracker.ietf.org)
• Vendor quota headers (varies by API): patterns like X-RateLimit-Limit, X-RateLimit-Remaining, X-RateLimit-Reset, or similar.
• Timestamp correlation: the same error repeats in clusters at predictable moments (e.g., top of minute) when quotas reset.
• Execution clustering in n8n: many executions start simultaneously because a burst of webhooks lands at once.

To keep the hook chain tight: if you can’t see headers easily, log the HTTP status, headers, and timing in the node that makes the request (or in a controlled “probe” request) so your workflow can adapt its pacing rather than guessing.

How do you diagnose whether the 429 is triggered by inbound webhooks, outbound requests, or n8n concurrency?

There are three main diagnosis paths for n8n webhook 429 issues—(1) inbound webhook overload, (2) outbound API quota limits, and (3) n8n concurrency saturation—based on where the 429 occurs and how execution volume changes over time.

Next, use a simple triage loop that produces proof, not opinions:

1. Locate the first failing hop (webhook response vs a downstream node response).
2. Measure burst shape (events per second, per minute, and peak concurrency).
3. Reduce variables (re-run with a lower rate or fewer parallel branches).
4. Confirm the limiter using headers, gateway logs, and queue/worker backlog.

If your organization calls this “n8n troubleshooting,” this is the phase where you stop treating 429 as a mystery and start treating it as a measurable throughput problem.

Which logs and metrics in n8n best reveal rate-limit and burst behavior?

There are four key observability signals for rate-limit diagnosis in n8n: (1) execution start rate, (2) concurrent executions, (3) node-level error rate by HTTP status, and (4) queue backlog/worker throughput if you run queue mode. (docs.n8n.io)

To make those signals usable, track them in the same time window:

• Execution rate: how many workflow runs start per second/minute during bursts.
• Concurrency: how many runs are active at once (bursts amplify concurrency even if average traffic is low).
• Node-level failure: the specific node returning 429 (HTTP Request node or vendor node).
• Latency growth: rising response times often precede 429 if the service is protecting itself.
• Queue indicators (if applicable): growing backlog and slower drain rates mean you’re receiving faster than you can process. Queue mode explicitly splits “main/webhook” from workers, which changes how you interpret latency and throughput. (docs.n8n.io)

Also watch for “secondary symptoms” that are not rate limits but are triggered by rate-limit side effects:

• n8n pagination missing records when paged API calls fail mid-run and your workflow doesn’t retry the page that failed.
• n8n duplicate records created when upstream systems retry webhook deliveries and your workflow isn’t idempotent.
• n8n data formatting errors when partial payloads, truncated bodies, or fallback branches push unexpected shapes into downstream nodes.

These aren’t separate problems—they’re the downstream cost of not controlling rate and retries.

How can you tell the difference between per-IP limits and per-token/per-account limits?

Per-IP limits show the strongest correlation with shared network identity, while per-token/per-account limits correlate with credentials and quota counters—even when IP changes—so IP-based tests and credential-based tests reveal different bottlenecks.

On the other hand, many teams misdiagnose this because they only test one variable at a time. Use a clean comparison matrix:

• Same token, different IP:
  • If 429 persists similarly, it’s likely token/account quota.
  • If 429 reduces significantly, it’s likely IP-based or gateway-based.
• Different token, same IP:
  • If 429 reduces, it suggests per-token/per-account quota.
  • If 429 persists, it suggests per-IP or shared gateway limit.
• Same workload, slower request rate:
  • If 429 disappears when you reduce rate, you’ve confirmed a rate limiter regardless of type.

Then, tie it back to your fix strategy: per-IP limits are often solved by ingress controls and smoothing, while per-token limits are solved by request pacing, batching, and quota-aware retries.

What are the most effective ways to throttle webhook-driven workflows to prevent 429 in n8n?

There are three main throttling approaches to prevent 429 in n8n webhook workflows: (1) delay-based pacing, (2) batching/chunking, and (3) limiting concurrency—chosen based on your API’s quota model and your webhook burst shape.

Then, apply throttling where it matters most: not everywhere, but at the point where you cross a limit. If your webhook fans out into many calls, throttle the fan-out. If bursts are the issue, smooth the burst.

Which throttling options work best: delay-based pacing, batching, or limiting concurrency?

Delay-based pacing wins for strict “requests per second” APIs, batching is best for large fan-out workloads with flexible latency, and limiting concurrency is optimal when parallel executions cause sudden spikes—so the best option depends on which metric the API enforces.

To make the comparison concrete, use these criteria:

• API enforces per-second rate (e.g., 10 RPS):
  • Delay-based pacing is simplest because you can literally schedule requests at an allowed interval.
• API enforces per-minute quotas (e.g., 600 RPM) and accepts batch endpoints:
  • Batching/chunking reduces overhead and spreads load naturally.
• Your bottleneck is concurrency (many webhooks at once):
  • Concurrency limits prevent burst spikes that cause synchronized failures.

A practical pattern is “concurrency cap + micro-delay.” The cap prevents spikes; the micro-delay prevents perfect alignment where many executions call the API at the exact same time.

How do you design retries and backoff that reduce 429 instead of amplifying it?

A retry design reduces 429 when it (1) honors Retry-After, (2) uses exponential backoff with jitter, and (3) stops after a bounded number of attempts—because those three controls prevent synchronized retry storms and runaway traffic. (datatracker.ietf.org)

Specifically:

• Honor Retry-After first: treat it as the authoritative delay. (datatracker.ietf.org)
• Exponential backoff: increase wait time after each failure so you quickly move away from the forbidden rate. n8n even publishes an exponential backoff workflow template that calls out retry storms and how to tune delays and max retries. (n8n.io)
• Add jitter: randomize delay slightly so thousands of identical executions don’t retry simultaneously.
• Bound your retries: after a maximum retry count, route to a safe failure path (alert, queue for later, or dead-letter).

Evidence matters here because “backoff” is not just folklore; it’s a studied coordination mechanism. According to a study by Stony Brook University from the Department of Computer Science, in 2016, the Re-Backoff protocol is designed to achieve expected constant throughput and reduce wasted access attempts in contested access scenarios, supporting the core idea that structured backoff improves coordination under contention. (www3.cs.stonybrook.edu)

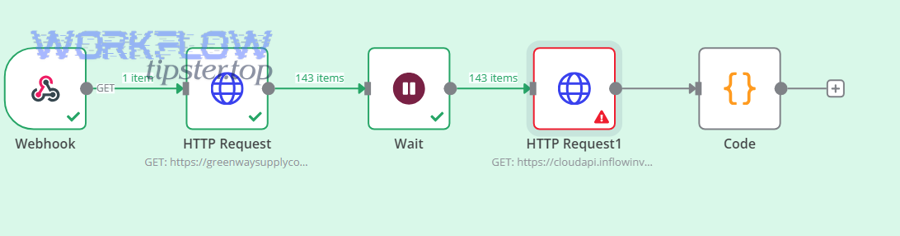

How do you cap fan-out when one webhook triggers many API calls?

You cap fan-out by (1) chunking items into small batches, (2) scheduling batch execution with a pacing rule, and (3) applying a global concurrency limit—because fan-out is the fastest way to exceed quotas even when each individual call seems harmless.

Here’s a durable way to think about it:

• A webhook is one event.
• Your workflow turns it into N outbound calls.
• Your true request rate becomes events/sec × N, not just events/sec.

So implement a fan-out governor:

• Chunking: process 10–50 items per chunk (tune to your API).
• Queue-like behavior: store chunks and process them sequentially (or with a small controlled parallelism).
• Backpressure: if downstream is rate-limiting, don’t keep generating new chunks faster than you can drain them.

This is also where pagination interacts with rate limits: if each page is a call, then page size effectively becomes a throttle lever. If you’re seeing n8n pagination missing records, it’s often because the workflow proceeds after a page fails, instead of retrying the failed page with backoff and then continuing.

How do you implement a reliable “fix now” workflow pattern for 429 errors in n8n?

Implement a reliable “fix now” pattern by using one method with five steps—detect 429, read Retry-After, wait, retry with backoff, and fail over after a cap—so the workflow recovers automatically without creating a retry storm. (datatracker.ietf.org)

Below, treat this as a control loop you can apply anywhere you call rate-limited services: HTTP Request node, vendor nodes, or even internal services.

Then, make the pattern consistent across workflows: use the same variable names for retry counters, the same maximum attempts policy, and the same alerting pathway so your automation behaves predictably.

What is a safe “429 handler” control flow in n8n (detect → wait → retry → failover)?

A safe 429 handler is: detect the status code, compute a wait time (Retry-After or exponential backoff), wait, retry with an incremented counter, and route to failover when the counter reaches a maximum—because that keeps load bounded while preserving recoverability. (datatracker.ietf.org)

A practical control flow looks like this (conceptually, not tied to any single node):

1. Make request (the API call node).
2. If success → continue.
3. If 429 → parse headers:
   • If Retry-After exists → use it.
   • Else → compute backoff: baseDelay × 2^retryCount with jitter. (datatracker.ietf.org)
4. Wait using the computed delay.
5. Increment retryCount and loop back to the request.
6. Failover after max retries:
   • Save payload for later reprocessing (dead-letter).
   • Notify (Slack/email/incident workflow).
   • Stop gracefully so you don’t create duplicates.

This is also your best defense against n8n duplicate records created: your failover path should never “half succeed” by writing the same entity twice after a retry. Pair the handler with idempotency (discussed later) so a retry can be safe.

Should you fail fast or keep retrying when you see repeated 429 responses?

Fail fast wins when you’re in a hard quota window you can’t outwait, keep retrying is best for transient spikes, and a hybrid approach is optimal when you can wait for a reset but must protect the rest of the system—so the right choice depends on quota reset behavior and business urgency.

Use a decision rule:

• Keep retrying when:
  • You have Retry-After or a known reset time.
  • The operation is critical and can tolerate latency.
  • You can cap retries and prevent storms.
• Fail fast when:
  • There’s no reset hint and you’re likely in a long throttling window.
  • You’re seeing widespread 429 across many requests (system-wide overload).
  • Retrying blocks workers and delays other workflows.
• Hybrid when:
  • You enqueue the job for later (so workers are freed immediately).
  • You alert once, not on every retry attempt.

If you choose hybrid, you also reduce secondary failures like n8n data formatting errors that occur when partial retries send incomplete objects into downstream transforms.

When do you need architecture-level protection beyond in-workflow throttling for n8n webhooks?

Yes—you need architecture-level protection beyond in-workflow throttling when (1) webhook bursts exceed what a single n8n process can absorb, (2) you run multiple workers/instances that collectively exceed shared API quotas, and (3) you require buffering to prevent data loss during spikes. (docs.n8n.io)

In other words, throttling inside a workflow is necessary, but not always sufficient. If you’re receiving 1,000 webhook events in a minute and each triggers downstream work, you may need a system that can accept quickly but process steadily.

Then, connect this to how n8n scales: in queue mode, a main/webhook process receives triggers while workers perform executions, with Redis as the broker and additional options like webhook processors for scaling incoming webhook requests. (docs.n8n.io)

Which webhook protection architectures reduce 429: queueing, buffering, or gateway rate limiting?

Queueing reduces 429 by decoupling intake from execution, buffering prevents burst loss by absorbing spikes, and gateway rate limiting is optimal for protecting upstream resources at the edge—so each approach solves a different failure mode. (docs.n8n.io)

Here’s how to compare them in real deployments:

• Queueing (n8n queue mode)
  • Best when you want n8n to accept triggers and process them via workers.
  • Helps when concurrency inside n8n is the bottleneck. (docs.n8n.io)
• Buffering (message bus / durable storage)
  • Best when you must not lose events during spikes or partial outages.
  • Lets you reprocess safely after failure windows.
• Gateway rate limiting (reverse proxy / API gateway)
  • Best when you must protect the webhook endpoint and prevent overload from even entering n8n.
  • Useful for abusive traffic, misconfigured senders, or sudden surges.

A simple way to choose: if the pain is execution overload, queueing helps; if the pain is event durability, buffering helps; if the pain is ingress abuse, gateway limiting helps.

How does queue/worker execution change your rate-limit strategy compared to single-instance n8n?

Queue/worker execution changes your strategy because rate is now distributed: a single instance can cap its own concurrency easily, but multiple workers can collectively exceed the same external API limit unless you enforce a shared global throttle. (docs.n8n.io)

That creates two practical shifts:

1. Global vs local limits
   • Local worker concurrency limits are not enough if the API quota is shared across workers.
2. Backoff coordination
   • Without coordination, multiple workers can enter synchronized backoff and then retry together, recreating spikes.

So treat “rate limiting” as a shared resource problem: either centralize throttling (one worker handles outbound calls) or implement a shared limiter (e.g., using Redis counters). n8n’s queue mode docs highlight how main/webhook processes pass executions to workers and how Redis is required, which is exactly the foundation you need for shared coordination. (docs.n8n.io)

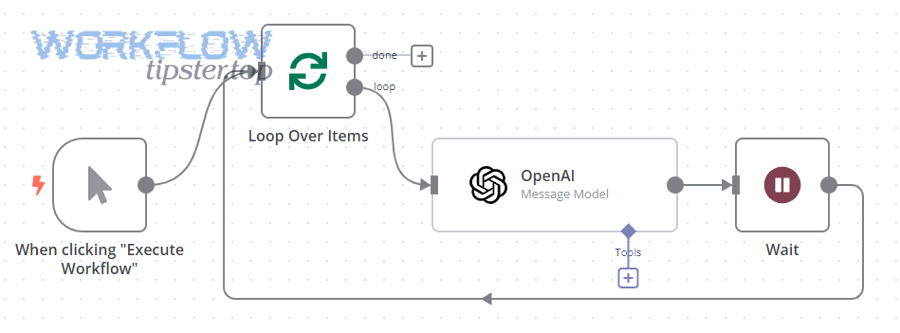

How can you harden n8n webhook processing against edge-case rate limits and burst spikes?

Harden webhook processing by applying four factors—traffic shape handling (burst vs steady), idempotency + deduplication, distributed rate limiting for scaled workers, and overload response strategy (accept vs reject)—so edge-case limits don’t turn into data integrity issues.

Next, think of hardening as micro-semantics: you already fixed the basics; now you’re preventing rare failure modes that appear only under stress, scaling, or unusual sender behavior.

You can also use one focused walkthrough video if your team prefers seeing the concept applied in a workflow UI:

(youtube.com)

What is the difference between “burst” traffic and “steady” traffic, and how should n8n handle each?

Burst traffic needs smoothing and buffering, steady traffic works best with simple pacing—so n8n should treat bursts as a queueing problem and steady streams as a throttling problem.

To make that comparison actionable:

• Burst traffic
  • Many events arrive in a short window.
  • Use: buffering, queue mode, concurrency caps, and jittered backoff.
• Steady traffic
  • Events arrive at a predictable rate.
  • Use: fixed pacing, small batch sizes, and lightweight retries.

The failure pattern is different too: bursts create synchronized failures (retry storms), while steady traffic creates gradual quota exhaustion. Your defenses should mirror the threat.

How do idempotency keys and deduplication reduce repeated webhook-trigger 429 loops?

Idempotency and deduplication reduce 429 loops because they prevent duplicate webhook deliveries and retries from creating extra outbound calls, which otherwise multiplies traffic exactly when systems are already throttling.

To implement this safely:

• Attach an idempotency key derived from a stable event identifier (e.g., event ID, message ID).
• Store processed keys with an expiration window (so replays within the window are ignored).
• Short-circuit duplicates early (before fan-out), so duplicates don’t generate downstream API calls.
• Use “create-or-update” semantics when possible, so retries don’t create duplicates.

This is the direct fix for n8n duplicate records created after a sender retries the same webhook event. It’s also a silent performance booster: fewer duplicates = fewer calls = fewer 429 collisions.

How do you implement distributed rate limiting when n8n runs multiple workers or instances?

Distributed rate limiting requires a shared counter and a shared schedule—because without a shared mechanism, each worker believes it is under the limit while the cluster exceeds the quota together. (docs.n8n.io)

A robust distributed limiter includes:

• Shared state: a central store (often Redis) that tracks requests per time window.
• Atomic increments: workers must “reserve” a request slot before calling the API.
• A wait policy: if no slots exist, the worker waits or requeues the job.
• Credential awareness: limit per token/account, not just per endpoint, when quotas are per credential.

This integrates naturally with n8n queue mode since Redis is already part of the architecture and workers already coordinate through it. (docs.n8n.io)

Should you accept the webhook immediately (202) or reject it (429/503) when overloaded?

Accepting immediately (202) is best for reliability and user experience, rejecting (429/503) is best for strict backpressure, and a hybrid approach is optimal when you can buffer internally but must protect upstream systems—so the right choice depends on whether you have durable buffering.

Use this comparison:

• Accept (202) + async processing
  • Best when you can enqueue and process later.
  • Prevents sender retries from amplifying traffic.
• Reject (429/503)
  • Best when you cannot process or buffer safely.
  • Forces the sender to slow down (if they respect retry semantics).
• Hybrid
  • Accept when queue is healthy; reject when queue is saturated to protect the system.

This decision also affects your “data correctness” symptoms: accepting quickly and processing steadily reduces timeout-driven partial payloads that later show up as n8n data formatting errors or incomplete runs.

Evidence (quick references used)

• HTTP 429 meaning and Retry-After behavior: datatracker.ietf.org
• n8n queue mode scaling model and worker/webhook split: docs.n8n.io
• n8n exponential backoff workflow template notes on retries and storms: n8n.io
• Stony Brook University CS research on scalable backoff coordination (2016): www3.cs.stonybrook.edu
