If you see n8n field mapping failed, you can usually fix it by (1) confirming the upstream node still outputs the field you mapped, (2) verifying you’re referencing the correct item (especially after loops/merges), and (3) normalizing your JSON shape before the node that fails. These three checks remove most “undefined” surprises and make your expressions stable.
Next, you’ll learn what the error actually means in n8n—whether the expression is invalid, the data path doesn’t exist, or item linking broke after branching—and how each scenario changes the fix you should apply.
Then, you’ll get a fast diagnosis flow: pinpoint the node where the value becomes undefined, reproduce it with pinned data, and validate the expression context so you stop guessing and start confirming.
Introduce a new idea: once you can fix a mapping failure, you can prevent it—by adding guardrails for optional fields, controlling side effects, and building safer patterns for scale.
What does “n8n field mapping failed” mean in practice?
n8n field mapping failed usually means your node tried to reference data from a previous node, but the reference couldn’t be resolved—most often because the JSON path is missing, the expression context is wrong, or item linking can’t determine which item to use. This aligns with how n8n describes mapping as referencing data rather than transforming it.
To understand the error in practice, separate it into three concrete failure modes:
- Path failure (missing field): Your expression points to a key that doesn’t exist for the current item (for example,
$json.fields.phonewhenfieldsis absent). - Context failure (wrong scope): You used the wrong variable for the node context (for example, expecting
$jsonto contain upstream fields when the current node replaced them). - Item-linking failure (ambiguous item): After branching/merging/looping, n8n can’t confidently match the “current item” to the upstream item you referenced, especially when using
.item. n8n’s docs call out avoiding.itemand using.first(),.last(), or.all()[index]when item matching is unclear.
Practically, your goal is to answer one question before you touch anything else: “Did the data ever exist for this item at runtime?” If the answer is “no,” you fix the upstream node or add a fallback. If the answer is “yes,” you find the step where it disappears (often a Set/Edit Fields node, a Merge, or a Code node).
Evidence: According to a study by University of Hawaii from the College of Business Administration, in 2000, error rates in complex cognitive tasks like writing code are about one in 50 to one in 20, which is why workflow expressions need systematic checks instead of assumptions.
How do you quickly diagnose why mapped values become undefined?
The fastest diagnosis method is a 3-pass debug loop: reproduce → localize → validate. This gives you an answer in minutes instead of repeatedly editing expressions “until it works.”
Pass 1 — Reproduce the failure (same inputs, same item count)
Start by forcing the workflow to fail deterministically:
- Run the workflow once and confirm the failing node and the exact field that becomes undefined.
- Pin upstream data only if it matches the real runtime structure; pinned data can hide item-linking issues if your real execution produces multiple items.
- If the workflow is event-driven (webhook/trigger), capture a real payload and re-run with that payload so you don’t debug a different shape than production.
Pass 2 — Localize where the value turns undefined
Then identify the “breakpoint node”:
- Check the output of each node from the last known “good” node to the failing node.
- Look for the first node where:
- the key disappears,
- the type changes (string → object/array),
- item count changes (1 item → many items),
- or the structure nests differently than before.
This is classic n8n troubleshooting: don’t fix the failing node first—fix the node that changed the data contract.
Pass 3 — Validate the mapping reference (path + context + item)
Once you know where the break happens, validate the mapping with a checklist:
- Path check: Does the key exist in the JSON for the current item?
- Context check: Are you reading from the right variable (
$json,$node["X"].json, etc.)? - Item check: If multiple items exist, are you accidentally referencing an ambiguous item? If you used
.item, switch to.first(),.last(), or.all()[index]when appropriate.
What exactly is failing: the expression, the path, or the item link?
It’s usually one of these three, and you can spot each by its signature:
- Expression failure looks like syntax errors, invalid functions, or a preview that can’t evaluate. The fix is rewriting the expression or simplifying it.
- Path failure looks like “undefined” even though the expression is syntactically valid. The fix is correcting the JSON path or adding fallbacks.
- Item-link failure looks like correct data exists upstream, but the reference breaks after merge/loop or when you reference another node’s item. The fix is changing how you select items and ensuring item lineage stays intact.
A practical rule: if the value exists in the upstream node’s output but fails only after branching or loops, suspect item-linking first.
Which built-in tools help you confirm what data is available at runtime?
There are three built-in “visibility” tools that turn hidden structure into obvious structure:

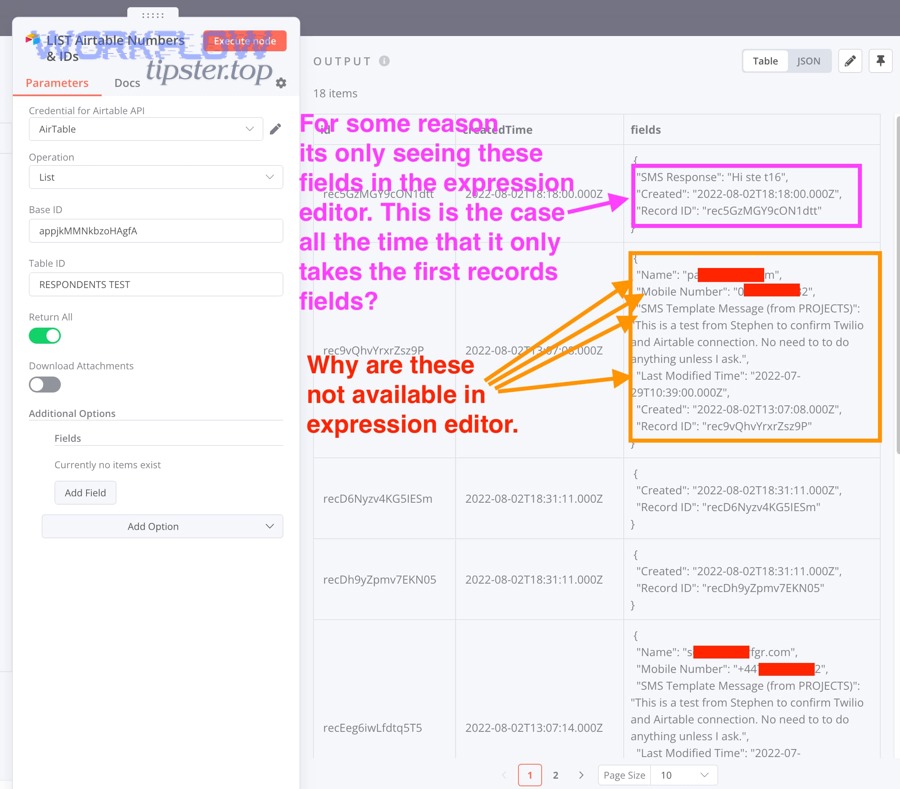

- INPUT/OUTPUT panels (Table + JSON view): Confirm the key exists and whether it’s nested.

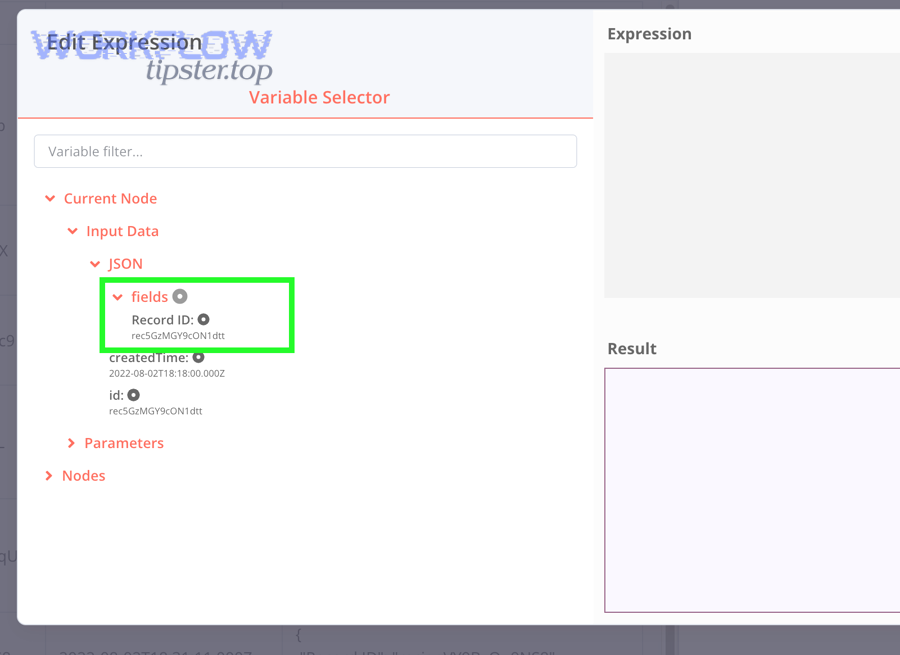

- Expression editor preview: Good for quick checks, but it may show only what’s in the “current” item preview, not every variation across items.
- Add a temporary “Debug” node step:
- Use a Set/Edit Fields node to copy the exact value you want into a clearly named field like
debug_targetValue. - Or use a Code node to log/return the computed value alongside the raw input so you can compare.
- Use a Set/Edit Fields node to copy the exact value you want into a clearly named field like
If your workflow outputs multiple items, add a diagnostic step that also surfaces the item index and any correlation keys (like IDs) so you can prove you’re mapping the intended record.
How do you fix expression syntax and context errors in mapped fields?
Fixing expression issues is about making the expression valid, contextual, and predictable. The best practice is to reduce expressions to “boring” building blocks first, then re-add complexity.
A reliable method is: simplify → validate → harden.
- Simplify: Replace a complex expression with a minimal one that you know should work (for example, map
$jsonor a single simple key). - Validate: Confirm it resolves for the same failing execution and item count.
- Harden: Add optional chaining/fallbacks and explicit casting only after the base mapping is stable.
How do you ensure the expression references the correct node output?
Use explicit node references when the “current node” context is not guaranteed to contain the upstream field.
Practical rules that prevent context mistakes:
- If the field must come from a specific upstream node, reference that node directly (instead of assuming
$jsoncontains it). - When using results from branches, prefer referencing the branch output node right before the merge, not a node far upstream.
- After a Set/Edit Fields node, confirm whether you kept original fields or replaced them.

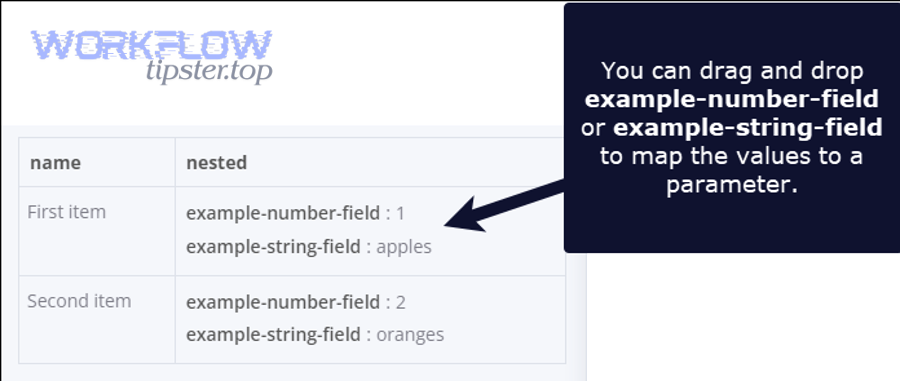

Also, if you’re dealing with data mapping by drag-and-drop, remember n8n generates expressions for you, but the generated expression is only correct if the data structure stays stable.
How do you fix missing variable scope after branching, merging, or looping?
When you branch, merge, or loop, you often change one of these: item count, item lineage (paired items), or the JSON shape.
To fix scope issues:
- After branching: Make sure each branch preserves the fields you’ll need later (or re-attach them at the merge).
- After merging: Confirm whether the merge output keeps both sides’ fields or only one side—then adjust your mapping accordingly.
- After looping: Verify that the loop outputs the item you think it outputs.
If you see errors related to “what item to use” or ambiguous references, shift away from .item and use .first(), .last(), or .all()[index] where you can guarantee intent.
Evidence: According to a study by University of Hawaii from the College of Business Administration, in 2000, even well-intentioned creators routinely make logic and omission errors in complex models—so your expressions should be designed to be testable and inspectable, not “clever.”
Which data-shape mismatches cause mapping failures, and how do you resolve them?
There are 5 main types of data-shape mismatches that trigger mapping failures: missing keys, wrong nesting, arrays vs objects, type mismatches, and item-count mismatch. They’re all the same root problem: your downstream node expects a contract your upstream nodes no longer honor.
Before the details, here’s a quick reference table showing common mismatch types and their most reliable fixes.
The table below summarizes the most common mismatch categories, what they look like at runtime, and the simplest fix that restores stable mapping.
| Mismatch type | What it looks like | Why mapping fails | Most reliable fix |
|---|---|---|---|
| Missing key | Key absent for some items | Path resolves to undefined | Add fallback + guard clauses |
| Wrong nesting | Field moved deeper/shallower | JSON path points to old structure | Update mapping to new path |
| Array vs object | You get [] but expect {} | You mapped a single field but it’s now a list | Select index or iterate |
| Type mismatch | number/string/object swapped | Node expects a specific type | Normalize types before mapping |
| Item-count mismatch | 1→N or N→1 changes | Item linkage becomes ambiguous | Preserve lineage or select item explicitly |
Now let’s unpack the practical “why” and “how” for each mismatch.
What are the most common mismatch patterns: array vs object, nested keys, and type conversion?
Array vs object
This happens when one node outputs an array of records but you map it like a single object. Fix options:
- Pick the intended element (first/last/index), or
- Iterate over items so each item maps one record.
Nested keys
This happens when upstream nodes wrap data (for example, placing fields under fields, data, or body). Fix options:
- Map the correct nested path, or
- Restructure once into a flat schema (best for long workflows).
Type conversion
This happens when you treat strings as numbers, or objects as strings. Fix options:
- Explicitly cast types before the destination node,
- Keep a consistent “contract” field type across all branches.
How do you normalize incoming data so mapping becomes stable across items?
Normalization is the most underrated fix because it prevents future breaks. Use a dedicated “schema normalization” step:
- Choose a canonical output schema (for example:
id,email,name,source,timestamp). - Ensure every branch outputs those keys—even if some are
null. - Convert types into the destination-friendly types early.
A simple pattern is: normalize right after data enters your workflow (after trigger/webhook/API node), then only map from the normalized fields downstream. This reduces your expression complexity and makes failures easy to localize.
When should you use a Code node vs built-in nodes to fix data shape?
Built-in nodes win when you need transparency and easy maintenance. Code node wins when you need precise logic or complex transformations.
A practical comparison:
- Built-in nodes win in: debuggability, non-developer maintenance, lower risk of breaking item linking.
- Code node is best for: custom parsing, advanced normalization, complex nested transforms.
- A hybrid approach is optimal for: keep 90% in built-in nodes, reserve Code for one “normalization module” that outputs a stable schema.
If you do use Code, be extra careful about preserving item linkage when outputting multiple items, because broken lineage can cause downstream mapping to fail.
Is the Edit Fields (Set) node a common cause of “mapping failed,” and how do you configure it safely?
Yes—Edit Fields (Set) can be a common cause of “mapping failed,” and it typically happens for three reasons: it drops fields you still need, it overwrites the JSON shape unexpectedly, or it changes types/keys in ways your downstream expressions don’t anticipate.
So while the Set node is often used as a “simple fix,” it can also become the invisible breaking point if you treat it like a harmless formatting step.
Yes—when it drops fields, overwrites JSON, or changes item structure
Here are the three high-frequency Set-node mistakes:
- Dropping required fields: You configure it to keep only set fields, and downstream nodes lose access to original keys.
- Overwriting structure: You set a field to a new object and accidentally remove sibling fields your mappings still reference.
- Changing structure across branches: In one branch you set
emailas a string; in another you set it as an object—then merge, then fail.
To avoid these, treat Set/Edit Fields as a contract node: it defines the shape and you keep it consistent everywhere.
How do you configure Edit Fields (Set) to preserve fields and avoid undefined values?
A safe configuration method:
- Decide first: Are you adding fields or replacing the payload?
- If you’re adding, preserve existing fields and only add new ones.
- If you’re replacing, do it once and then stop referencing upstream keys—reference only the new contract keys.
Also adopt a habit: immediately after the Set node, check OUTPUT JSON view and confirm the keys you expect exist for multiple items (not just one).
What safe patterns prevent Set node mistakes in long workflows?
Use patterns that scale:
- Normalize then map: One Set node early to normalize; downstream nodes only map from normalized fields.
- Debug mirror: Temporarily copy critical values into
debug_*fields so you can inspect runtime values without rewriting your logic. - Branch contract: Each branch returns the same schema before a merge.
If your team keeps hitting “mapping failed,” standardize these patterns as internal conventions—it’s cheaper than repeatedly fixing broken workflows.
How can you prevent n8n field mapping failures in complex workflows?
Preventing mapping failures is a 4-part method: contract design, test strategy, resilience handling, and side-effect safety. Done together, you eliminate most failures before they reach production.
How do you design a “data contract” so mapping doesn’t break when nodes change?
A data contract is a small, explicit schema that your workflow commits to:
- Establish canonical keys (IDs, timestamps, required fields).
- Guarantee presence: required keys always exist; optional keys default to
null. - Freeze the meaning of keys:
emailis always a string, never sometimes an object.
Then enforce it:
- Normalize immediately after data ingestion.
- After every branch, return to the contract before merging.
- Avoid mapping from raw third-party payloads deep in the workflow.
This approach also reduces “mystery failures” that only happen when a third-party API changes a response field name.
What testing and monitoring routines catch mapping failures before production?
There are 3 main types of workflow tests you should run:
- Shape tests: Validate keys exist and types match expected types (especially after Set/Merge/Code).
- Item-count tests: Verify item counts at key checkpoints so loops/merges don’t silently change your mapping assumptions.
- Regression tests: Save a small set of real payloads and re-run them after workflow edits.
Monitoring habits:
- Add alerting when a workflow starts failing repeatedly.
- Log the “breakpoint node” and the missing key, so you don’t re-debug from scratch.
How do you handle rate limits and API errors without breaking your mappings?
Rate limits can look like mapping failures because an upstream API node may return an error-shaped payload (or partial payload) that doesn’t match your normal schema. If you’ve ever seen n8n api limit exceeded behavior, you know the next node often fails because the keys it expects are absent.
Prevention strategy:
- Put API calls behind a resilience layer:
- retry with backoff,
- detect error responses,
- and route errors into a dedicated “error contract” branch.
- Normalize both success and error outputs into predictable schemas:
status,data,error,retryAfter.
That way, downstream nodes never guess whether the payload is success-shaped or error-shaped—they always map from the same contract keys.
How do you avoid side effects like duplicate writes when retries occur?
Retries and partial failures can easily cause n8n duplicate records created in destination systems (CRMs, spreadsheets, databases). While that’s not a “mapping failed” error, it’s a workflow integrity failure that often appears when you add retries to “fix” flaky API responses.
Safe anti-duplicate patterns:
- Idempotency key: Use a stable key (source ID + timestamp bucket) so “create” becomes “upsert.”
- Check-before-write: Search destination first, then create only if missing.
- Write ledger: Store processed IDs in a data store so retries don’t repeat side effects.
- Separate compute from commit: Do all mapping/validation first, then perform the write step once you are confident the payload is correct.
Finally, tie it back to mapping: if you validate your contract before side effects, you won’t accidentally write records containing undefined fields or wrong IDs.
Evidence: According to a study by University of Hawaii from the College of Business Administration, in 2000, field audits and experiments show high error prevalence in complex models—so prevention requires disciplined inspection, testing, and contract design rather than relying on “it looks right in the editor.”
