Fix “Attachments Missing / Upload Failed” in n8n: Troubleshoot Binary Data & File Upload Errors for Workflow Builders (Missing vs Working)

If your n8n workflow says “attachments missing” or an upload step fails, you can fix it by treating the problem as a binary data pipeline issue: confirm the file exists as binary on the current execution item, map the correct binary property into your upload node, and validate filenames/MIME types before sending.

Most failures come from a few repeatable causes—wrong binary property name, some items having no binary, branches/merges dropping binary, or multiple attachments not being iterated correctly—so you’ll get the fastest win by diagnosing in that order and testing with one attachment before scaling.

Then, you need target-specific configuration: multipart/form-data uploads in HTTP Request nodes behave differently from “upload to Drive” style nodes, and email attachment steps often require the binary field to be present and correctly referenced, not just visible upstream.

Introduce a new idea: once your workflow is “working” in manual tests, the last mile is making it stay working in production—where differences like active-mode execution, limits, retries, and even unrelated issues like n8n timezone mismatch or n8n webhook 429 rate limit can make debugging feel confusing unless you use a consistent troubleshooting frame.

Is “Attachments Missing / Upload Failed” in n8n usually caused by missing binary data?

Yes—“attachments missing / upload failed” in n8n is usually caused by missing binary data because the upload node can’t find a binary property on the current item, the binary property name doesn’t match, or a branch/merge returns items without binary.

More importantly, this is the core of effective n8n troubleshooting: you’re not just asking “is the file somewhere in the workflow?”—you’re asking “is the file binary on this item right before upload?”

When you treat the error this way, you stop guessing and start validating a short chain:

1. Binary exists right before upload (on each item that will upload).
2. Binary property name matches what the upload node expects.
3. Filename/MIME type exists (especially for multipart uploads).
4. Each file becomes an item (or is looped) when you have multiple attachments.

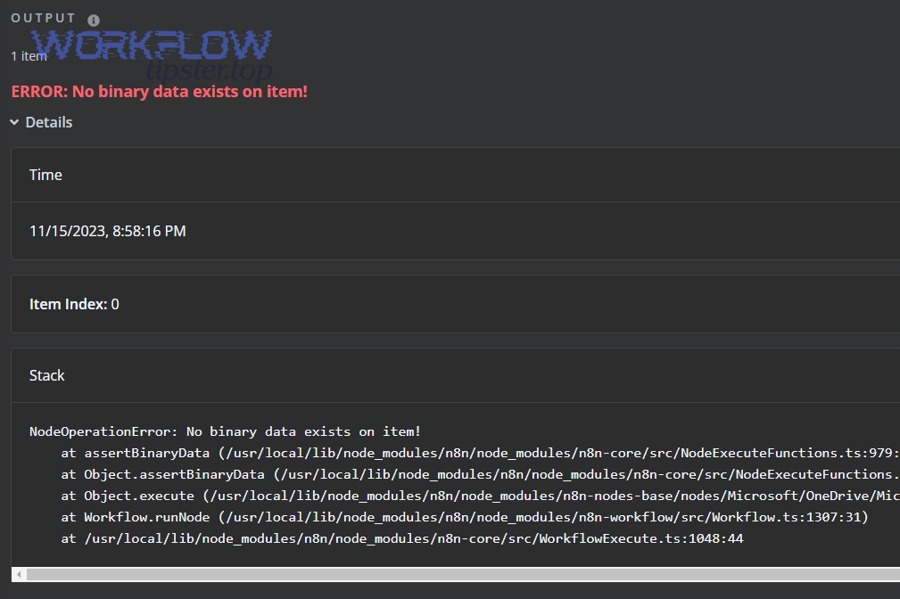

What does “No binary data exists on item” mean in n8n?

“No binary data exists on item” means the current item being processed does not contain a binary field at the binary property key you referenced, even if earlier nodes produced binary in a different item or under a different property name.

Specifically, this error points to item-level mismatch: n8n processes data as a list of items, and each item can have JSON fields and (optionally) binary fields. n8n’s own documentation defines binary data as file-type data (images, documents, etc.) that flows through workflows alongside JSON.

To debug it quickly, check these in execution data:

• Item count entering your upload node (do you have 1 item or many?).
• Binary tab/section for the exact item that fails.
• Binary property key (often data, attachment, file, or a node-specific name).
• File metadata inside binary (filename, mimeType, size), if present.

A common pattern from the n8n community is that the node is “referencing a non-existent item” or the binary property name doesn’t match what the upload node expects.

Does n8n run uploads per item (and can that make some attachments “missing”)?

Yes—n8n runs uploads per item, and that can make attachments look “randomly missing” because some items have binary while others don’t, or because one email with multiple attachments is not split into one item per attachment.

Next, this is where many workflows silently break: you fetch attachments as a list, but the upload node executes once per item, not “once per email.”

To make multiple attachments reliable, you typically want one of these patterns:

• Split into items: one item per attachment, each with its own binary.
• Loop: iterate over attachment list, convert each to binary, upload each.
• Guard and report: if an item lacks binary, skip upload and log what was missing.

This is also why “I see the attachment upstream” isn’t enough—because the item entering the upload node might not be the same item that contains binary.

What exactly are “attachments” and “binary data” in n8n workflows?

In n8n, an attachment is the file you want to move (PDF, image, doc), while binary data is the file’s byte content stored on an item under a binary property, alongside JSON metadata.

Then, once you align those two concepts, most upload failures stop being mysterious: you simply ensure the attachment becomes binary on the item that reaches the upload node.

In practical terms, think of a stable pipeline like this:

• Source node (email, webhook, HTTP download) produces a file (attachment).
• n8n stores that file as binary data on the item (binary property).
• Transform nodes may rename, merge, filter, or convert the file.
• Upload node sends the binary file to a destination (Drive/API/email).

Which nodes commonly produce attachments as binary (Email/IMAP, Webhook, HTTP Request)?:

There are 3 main ways n8n produces attachments as binary: (1) Email/IMAP fetch nodes, (2) Webhooks receiving file uploads, and (3) HTTP Request/download nodes pulling files from a URL—based on whether the file originates from an inbox, an inbound request, or a remote server.

Specifically, each group has a different “gotcha”:

1. Email/IMAP fetch: multiple attachments often arrive as an array; you must ensure each attachment becomes binary (or is iterated).
2. Webhook uploads: sometimes you get metadata or base64 in JSON; you may need conversion depending on how the webhook is configured.
3. HTTP download: the response may be JSON unless you set the response to file/binary and store it in a binary property.

If you’re unsure which category you’re in, your execution data will show it: look for an actual binary block vs a long base64 string living in JSON.

What’s the difference between “binary data” and “base64/text content” in n8n?

Binary data wins in upload reliability, base64/text is best for transport in JSON, and “metadata-only JSON” is optimal for logging—so you should convert base64/text into binary before file uploads that expect multipart or “file” payloads.

However, the key practical difference is this: upload nodes generally expect binary, not base64 strings.

A quick comparison that prevents wasted hours:

• Binary: treated as a file, usable by upload nodes directly.
• Base64 in JSON: readable and portable, but often must be decoded to binary to upload.
• Metadata-only JSON: useful for traceability, but cannot upload a file without the bytes.

If you’re holding base64, your symptoms often include “upload failed” with confusing 400 errors, because you’re sending the wrong payload type.

What are the most common causes of attachment upload failures in n8n?

There are 4 most common causes of attachment upload failures in n8n: wrong binary property name, binary dropped across branching/merging, empty/filtered items, and missing filename/MIME metadata—based on where the workflow loses the file between source and upload.

Besides, this is where “Missing vs Working” matters: the workflow can look correct while the upload item is wrong.

Here’s a simple table that summarizes what each failure looks like and what to check first. This table helps you map symptoms to root causes before you start changing nodes blindly.

Symptom you see	Most likely cause	What to check first
“No binary data exists on item”	Wrong binary property name OR different item	Binary key on the failing item
Some attachments upload, others “missing”	Multiple items, not all have binary	Item count + per-item binary presence
Upload fails with 400/404	Payload type/fields wrong (multipart)	Field name, filename, content-type
Upload works in test, fails in active	Execution context differences	Credentials, limits, concurrency

Is the upload node pointing to the wrong binary property name?

Yes—this is often the root cause because n8n stores files under a specific binary property (like data), and if your upload node references a different key, it behaves as if the attachment doesn’t exist.

To begin, verify the binary property name in the node right before your upload:

• Open execution data for the prior node.
• Locate Binary and note the exact key name (e.g., data).
• In the upload node, set Binary Property to that exact key.

A common community answer is precisely this: the name of the binary property must match the value set in the upload node; otherwise, the node will reference a non-existent binary field.

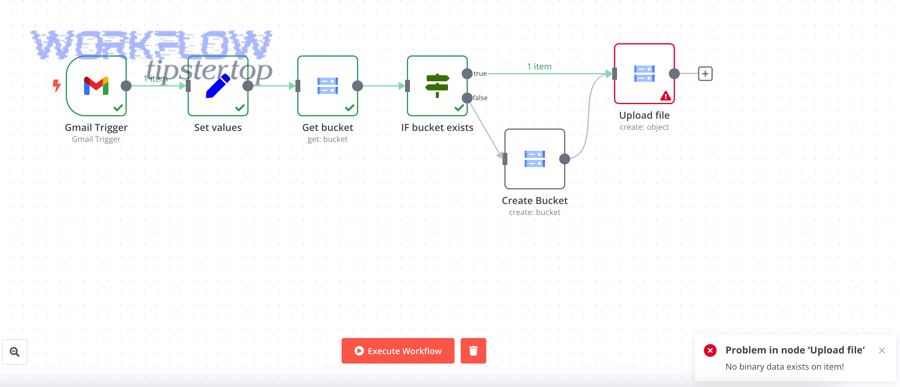

Can branching/merging cause binary data to be dropped between nodes?

Yes—branching/merging can drop binary data because some paths output items without binary, and merge strategies can combine JSON while leaving binary behind if items don’t align by index or key.

More specifically, binary can disappear in these scenarios:

• An IF node’s “false” branch continues with items that never had binary.
• A Merge node combines JSON fields from one branch with items from another branch that lacks binary.
• A Set/Edit Fields step overwrites the item structure and removes binary references.

A reliable rule: assume binary is not preserved unless you confirm it is preserved. Check the execution data after each branch/merge point and look for the binary key on every item that continues.

Are some items empty or filtered out before upload?

Yes—empty items or filtered items often cause attachment gaps because an email may have no attachment, an attachment list may be empty, or a filter may drop the items that actually contain binary.

Meanwhile, this is why “some files upload, some don’t” can be totally logical: your workflow is doing exactly what it was configured to do—processing items that don’t carry files.

Practical fixes:

• Add an IF condition: binary exists → upload; else → log.
• Normalize attachments: treat “no attachment” as a known state, not a surprise.
• If you use filters, log item counts before/after the filter.

Are file name or MIME type issues causing the upload to fail?

Yes—filename or MIME type issues can cause upload failures because many APIs require a filename in multipart form-data, and a null/empty name can trigger errors even when binary bytes exist.

Especially for HTTP multipart uploads, you should confirm:

• fileName exists (or you set a default).
• mimeType is present or sensible (e.g., application/pdf).
• The multipart field name matches what the API expects (e.g., file or media).

This is one of those “Working vs Failing” differences: the file is present, but the destination rejects it.

How do you troubleshoot “attachments missing” step-by-step in n8n?

Use a single method: follow a 6-step diagnostic path—reproduce the failure, inspect the failing item, confirm binary exists, confirm binary key mapping, test with one attachment, then scale to multiple—to reliably restore working uploads.

Next, this process keeps your workflow changes minimal and reversible.

Here’s the 6-step checklist that works across Drive, HTTP, and email targets:

1. Reproduce with a known sample (one email/file).
2. Inspect the failing item (not just the node output in general).
3. Verify binary exists right before upload.
4. Verify binary property name matches upload node configuration.
5. Verify metadata (filename, mimeType, size).
6. Scale (split/loop) for multiple attachments.

How can you verify the binary exists before the upload node?

You verify binary exists by opening execution data for the node immediately before upload and confirming the failing item shows a Binary section with a file entry under the exact key you plan to reference.

Specifically, don’t just look at “any item”—look at the same item index that reaches the upload node.

A fast verification routine:

• Note the item index that fails in the upload node.
• Go one node upstream and open that same item index.
• Confirm there is a binary property key (e.g., data) and that it contains a file.

This is why item-by-item verification matters.

How do you isolate whether the problem is the source node or the upload node?

Source wins if binary is missing before upload, upload wins if binary is present but the destination rejects it, and your workflow logic is at fault if binary exists on some items but not others.

Then, use two controlled tests:

• Test A (Source validation): Replace upload with a “write/save binary” step (or a debug step) to prove binary exists.
• Test B (Upload validation): Feed a known-good binary into the upload node (from a simple download node) to prove the upload is configured correctly.

Interpretation:

• Fails in Test A → source/transform chain not producing binary on that item.
• Passes Test A, fails in Test B → upload node mapping/metadata/destination config.
• Mixed across items → itemization, branching, filtering, or multi-attachment handling.

How do you handle multiple attachments reliably (looping vs batching)?

Looping wins for reliability, batching is best for speed, and “one item per attachment” is optimal for clarity—so for missing uploads, prefer one item per attachment or a loop until the workflow is stable.

More specifically:

• One item per attachment: simplest to debug; every item is a file; upload is trivial.
• Loop: controlled and explicit; great when source returns an array of attachments.
• Batch: efficient, but failure handling is harder; one broken file can derail the batch.

A reliable pattern is: split/loop → validate binary exists → upload → log success/failure per file.

According to a study by University of Cincinnati from the Department of Engineering Education, in 2017, developers spend 35–50% of their time validating and debugging software—so investing in a consistent diagnostic checklist can reduce repeated trial-and-error cycles.

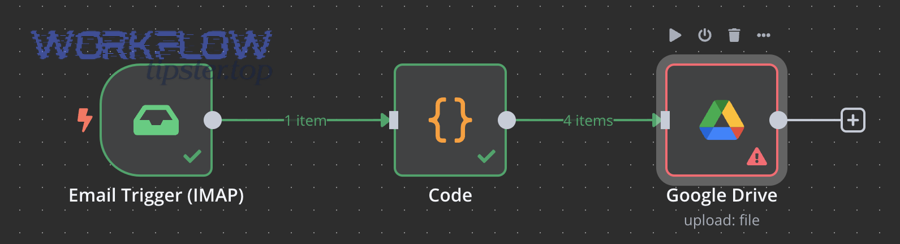

How do you fix upload configuration for the most common targets?

Fix upload configuration by choosing the correct binary property, setting required metadata (especially filename), matching the destination’s expected field names, and validating permissions—then rerun with one known file until the upload is working.

In addition, this section connects “missing vs working” to destination reality: an upload node can be correctly mapped, yet still fail due to API requirements.

Below is one embedded walkthrough video that’s useful for visual learners (the steps remain the same regardless of your exact destination).

How do you fix Google Drive uploads when attachments are “missing”?

There are 4 main fixes for Drive uploads: confirm the binary property, ensure one file per item (or loop), set a filename, and verify destination permissions—based on whether the upload fails before sending, during sending, or after receiving.

To better understand which fix matters, map your symptom:

• “No binary data exists” → binary key mismatch or wrong item.
• Uploads only some files → itemization/looping issue.
• Uploads but wrong name/type → missing filename/mimeType.
• Permission/invalid folder → credentials or folder ID.

A practical, low-risk approach:

1. Pick one email with one attachment.
2. Ensure it becomes binary under a known key (e.g., data).
3. Configure the Drive upload node to use that key.
4. Set the filename explicitly if needed.
5. Run again, then scale to multiple attachments.

If you ever feel “it should work,” pause and re-check the item index: most “missing” bugs are item mismatch, not node failure.

How do you send binary as multipart/form-data using the HTTP Request node?

Send binary as multipart/form-data by using one file field with the correct form key, binding it to your binary property, providing a filename, and letting the node build the boundary—then confirm the API’s required field names and content-type expectations.

However, multipart failures look like “upload failed” even when binary exists, because the server rejects the form fields.

A reliable multipart checklist:

• Field name matches API docs (commonly file, media, or attachment).
• Field value points to binary property key (not JSON/base64).
• Filename is set (or inferred) and is not null.
• Optional fields (channel, folder, message, metadata) are set correctly.

If your workflow also handles inbound requests, remember that an upload failure is not the same as a webhook failure: n8n webhook 403 forbidden indicates authorization/ACL issues, while n8n webhook 429 rate limit indicates throttling—both can block your pipeline before binary even exists.

How do you attach files when sending emails from n8n?

Attach files when sending emails by ensuring the outgoing email node references the correct binary property key, verifying each attachment is present as binary on the item, and looping when you have multiple attachments—then test with a single file to confirm the mapping.

Especially when a workflow mixes transformations, “binary not passing through” is common: JSON continues, binary does not, and your email step sends without the attachment.

Practical safeguards:

• Add a pre-check IF: “binary exists” → send with attachment.
• If multiple attachments: loop and attach in a controlled way (or merge into a consistent structure if supported).
• Log the filename for each item you send, so you can confirm which files were actually attached.

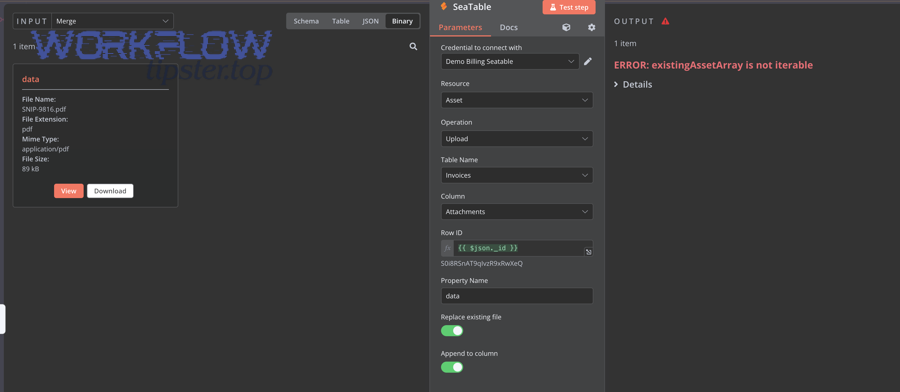

How can you prevent “upload failed” from happening again in production workflows?

Yes—you can prevent recurring “upload failed” by adding pre-flight binary checks, implementing retries with backoff for transient errors, logging per-file outcomes, and enforcing limits/timeouts—because prevention turns a fragile workflow into a predictable system.

More importantly, these are the same stability patterns you’d use for any integration: validate inputs, isolate failures, and make outcomes observable.

Should you add a pre-flight check that binary exists (and skip or reroute if not)?

Yes—you should add a pre-flight check because it prevents pointless upload attempts, produces clean logs for missing items, and enables safe rerouting (notify, store metadata, or request re-send) without breaking the whole execution.

Next, a strong pre-flight check uses three signals:

1. Binary exists on the item (true/false).
2. Binary key is the one you expect (correct name).
3. File metadata is usable (filename not empty, size > 0, mimeType plausible).

A simple control flow:

• If binary exists → upload.
• Else → log: “missing binary” with item index + email ID + subject + expected binary key.

This transforms “attachments missing” from a surprise into a tracked, explainable state.

Should you implement retries and per-file error reporting for uploads?

Yes—implement retries and per-file reporting because retries help transient network/API errors, per-file reporting isolates failures, and together they reduce “silent missing uploads” that are hard to detect in automation.

However, retries should be conditional:

• Retry helps: timeouts, intermittent 5xx responses, temporary throttling.
• Retry doesn’t help: missing binary, wrong field name, null filename.

For rate limits, exponential backoff is a standard coordination technique; research from Stony Brook University’s Department of Computer Science (2016) studies exponential backoff protocols and their ability to maintain throughput while reducing repeated failed access attempts.

This is why “retry with backoff” is a good production default—but only after you’ve ensured your binary mapping is correct.

Why does an n8n upload work in manual tests but fail in active mode ?

Active mode fails while manual mode works because credentials/runtime configuration can differ, concurrency and limits change behavior, and production traffic introduces timeouts and rate limits—so you fix it by comparing execution context, not by rewriting the workflow.

Then, treat this as “Working vs Failing” under different conditions: same logic, different environment.

Is the failure caused by different credentials, permissions, or runtime configuration in active executions?

Yes—different credentials, permissions, or runtime settings commonly cause active-mode failures because token refresh, folder permissions, container file access, or proxy limits may differ from what you used during manual tests.

Specifically, check:

• Are you using the same credential set in active mode?
• Does your runtime have the same access to temp storage/binary persistence?
• Is there a reverse proxy/body size limit that blocks large attachments?
• Are you self-hosting with stricter network egress rules?

If you also see unrelated symptoms like n8n timezone mismatch, address them separately—but note the shared lesson: production context affects behavior, so always log environment assumptions (timezone, base URL, auth scopes) alongside upload logs.

Are timeouts, file size limits, or concurrency causing intermittent “upload failed”?

Yes—timeouts, size limits, and concurrency often cause intermittent failures because larger files take longer, parallel uploads trigger throttling, and downstream services enforce payload and rate constraints.

More specifically, you can stabilize production by:

• Limiting concurrency for upload-heavy branches.
• Setting explicit timeouts appropriate to file sizes.
• Adding retry with backoff for transient failures.
• Logging file size and upload duration per item.

This is also where webhook issues can mask upload issues: if your workflow begins with inbound traffic and you hit n8n webhook 429 rate limit, some executions may never reach the binary creation step—making it look like “attachments missing,” when the workflow never processed the file at all.

Is your error actually a version-specific bug (e.g., form-data “null name”)?

Yes—sometimes the error is a version-specific bug or edge-case because multipart encoding, file metadata handling, or node behavior can produce null filenames or mismatched fields that only appear under certain data shapes.

Especially, suspect this when:

• Your configuration is correct for most files, but fails for a particular file type.
• The failure message references null/undefined filename.
• The issue started after an upgrade or node change.

Your mitigation path should stay conservative:

1. Set filename explicitly (avoid “null name” scenarios).
2. Simplify form-data fields (one file field + required metadata only).
3. Reduce the workflow to a minimal reproducer.
4. Consider upgrading/downgrading if a specific regression is known.

What’s the difference between “attachments missing” and “upload failed” symptoms—and how should you debug each?

“Attachments missing” means binary never reached the upload node, “upload failed” means binary reached the upload node but the destination rejected it, and “some missing” means itemization/branching is inconsistent—so you debug by checking binary presence first, then payload correctness.

In short, use this decision tree:

• Missing → verify binary exists on failing item → fix binary key / branching / loops.
• Failed → verify filename/field mapping/permissions → fix destination config.
• Intermittent → verify limits, timeouts, concurrency, rate limiting → fix production stability.

That separation keeps your workflow changes targeted and prevents you from “fixing the wrong layer.”
